NFPP Sodium-Ion
Utility / Grid Battery System
ZXES2300
Utility-scale containerized BESS for renewables integration, grid support, and large site storage.
Quick Spec: 2.3MWh • 1.25MW class • 20ft container • Liquid cooling • EMS ready • CAN/RS485/TCP-IP
Overview

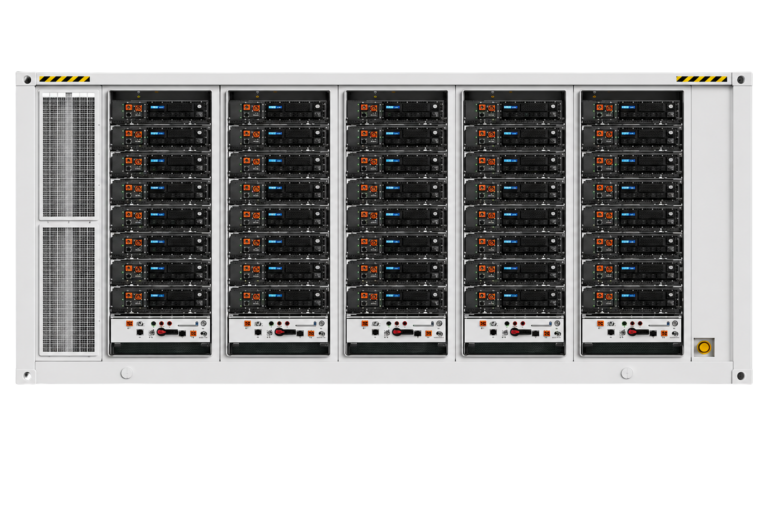

ESS2300kWh is a utility-scale containerized system combining battery racks, multi-tier BMS, container EMS, liquid cooling, and multi-layer fire protection for long-duration operation and grid-connected dispatch.
Key Advantages
- Container architecture for rapid deployment
- Integrated thermal management & monitoring
- Scalable configuration for project sizing
- Multi-layer safety strategy (project dependent)
Applications
- Primary: Utility & Grid
- Secondary: Remote Infrastructure (project dependent)
Technical Specifications
|
Items |
Specification |
|
Model |
ESS2300kWh |
|
Rated Voltage |
1198V |
|
Rated Capacity |
160Ah |
|
Rated Energy |
2300kWh |
|
Charge Discharge Rate |
0.5P / 0.5P |
|
Configuration |
12P416S |
|
Rack Insertion Specification |
1P52S |
|
Dimensions
( D* W* H, mm) |
6058* 2550* 2896 |
|
Weight |
≤43000 kg |
|
Operating Temperature Range |
-20 to 60℃ |
|
Operating Humidity Range |
0
to 95% (No Condensation) |
|
Protection Level |
IP54 |
|
Cooling Method |
Liquid Cooling |
|
Cycle Life @25℃,
0.5P/0.5P |
≥8000 |
|
Fire Protection |
Automatic Fire Suppression System |
|
Communication Interface |
CAN, RS485, Ethernet |
