NFPP Sodium-Ion
Residential Battery System

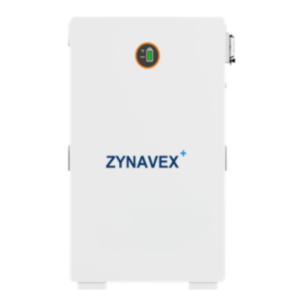

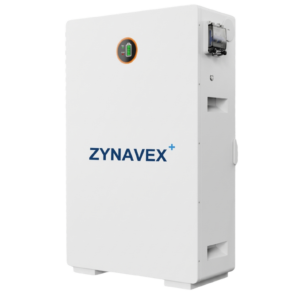

Na48160W
48V 160Ah wall/floor-mount NFPP battery for residential backup and solar storage
Quick Spec: 7.68kWh • 32–55.2V • 8,000 cycles • IP65 • RS232/CAN/RS485 • Up to 20 parallel
Overview
Na48160W is a comprehensive home battery designed for indoor or sheltered outdoor installation. It includes a verified BMS architecture for inverter compatibility, supporting hybrid grid-tied and off-grid modes
Key Advantages
• IP65 enclosure for robust installation
• 8000 cycles life for daily cycling
• Parallel scalability for larger systems
• Built-in aerosol fire extinguishing protection
Applications
- Primary: Residential
- Secondary: Remote Infrastructure (project dependent)
Technical Specifications
|
Items |
Specification |
|
Battery Technology |
NFPP |
|
Installation |
Wall / Floor |
|
Rated Voltage & Capacity |
48V, 160Ah |
|
Rated Energy |
7680Wh |
|
Max Charging Current |
200A |
|
Max Discharging Current |
200A |
|
Cycle
Life @25℃,
0.5P/0.5P |
≥8000 |
|
Dimensions
(W*D*H, mm) |
500*227*800 |
|
Weight |
113 kg |
|
Operating Temperature |
-40 to 60℃ |
|
Cooling Method |
Natural Cooling |
|
Communication Interface |
RS232, CAN, RS485 |
|
Protection |
Intelligent BMS |

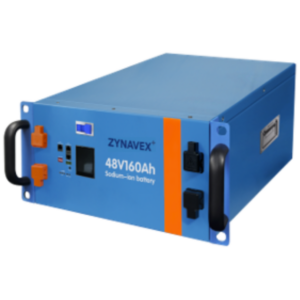

Na48160R
48V 160Ah rack battery for larger residential, community storage, and extended backup runtime.
Quick Spec: 48V • 160Ah • 7.68kWh • ≥8000 cycles • -40~60°C • CAN/RS485
Overview
Na48160R increases energy density per rack, reducing the number of modules required for a given home backup or self-consumption target.
Key Advantages
- High energy per module
- Wide temperature tolerance
- Long cycle life
- CAN/RS485 integration support
Applications
- Primary: Residential
- Secondary: Remote Infrastructure (project dependent)
Technical Specifications
|
Items |
Specification |
|
Battery Technology |
NFPP |
|
Installation |
Rack |
|
Rated Voltage & Capacity |
48V, 160Ah |
|
Rated Energy |
7680Wh |
|
Max Charging Current |
100A |
|
Max Discharging Current |
100A |
|
Cycle
Life @25℃,
0.5P/0.5P |
≥8000 |
|
Dimensions
(W*D*H, mm) |
442*720*230 |
|
Weight |
79 kg |
|
Operating Temperature |
-40 to 60℃ |
|
Cooling Method |
Natural Cooling |
|
Communication Interface |
CAN, RS485 |
|
Protection |
Intelligent BMS |
