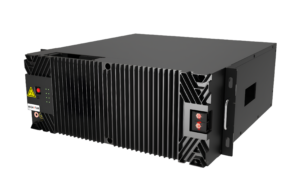

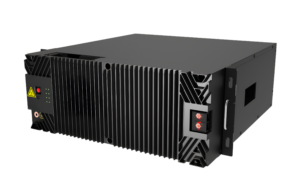

NFPP Sodium-Ion
Telecom Battery System
ZXTS48100
48V 100Ah NFPP sodium-ion telecom rack battery for reliable DC backup and modular scaling.
Quick Spec: 48V • 100Ah • 4.8kWh • ≥8000 cycles • -10~60°C • 19” Rack • SNMP/TCP-IP
Overview
SIB48100 is a compact 19” rack battery designed for telecom DC backup and energy buffer use. NFPP sodium-ion chemistry supports long cycle life and stable operation for repetitive charge/discharge duty.
Key Advantages
Safe
Advanced sodium-ion battery technology, fully pass nailing testing, no fire, no smoke, no explosion, 3 levels protection from cell to pack.
Simple
Self-developed BMS and DCDC technology, high charging efficiency, flexible configuration, easy use and install, support 32 blocks in parallel.
Smart
Standard rack design, hybrid use of VRLA or Li-ion Battery, automatic charging and discharging, with SNMP and TCP/IP to remote monitoring.
Secure
Anti-theft function, with gyroscope and software lock, which renders the battery output inoperative.
Sustainable
Extraordinary long lifetime and cycle life, environmental friendly, green and clean, easy recycle, local disposal.
Applications
- Primary: Telecom, Remote Infrastructure
- Secondary: Small DC backup projects
Technical Specifications
|
Items |
Specification |
|
Battery Technology |
NFPP |
|
Hybrid Use |
VRLA/Li-ion |
|
Rated Voltage & Capacity |
48V, 100Ah |
|
Rated Energy |
4800Wh |
|
Max Charging Current |
100A |
|
Max Discharging Current |
100A |
|
Cycle Life @25℃, 0.5P/0.5P |
≥8000 |
|
Dimensions (
W*D*H, mm) |
480*550*200 |
|
Weight |
46 kg |
|
Operating Temperature |
-10 to 60℃ |
|
Cooling Method |
Natural Cooling |
|
Installation |
Standard 19 Rack |
|
Communication Interface |
SNMP, TCP/IP |
|
Security |
Software |
|
Protection |
Intelligent BMS |
